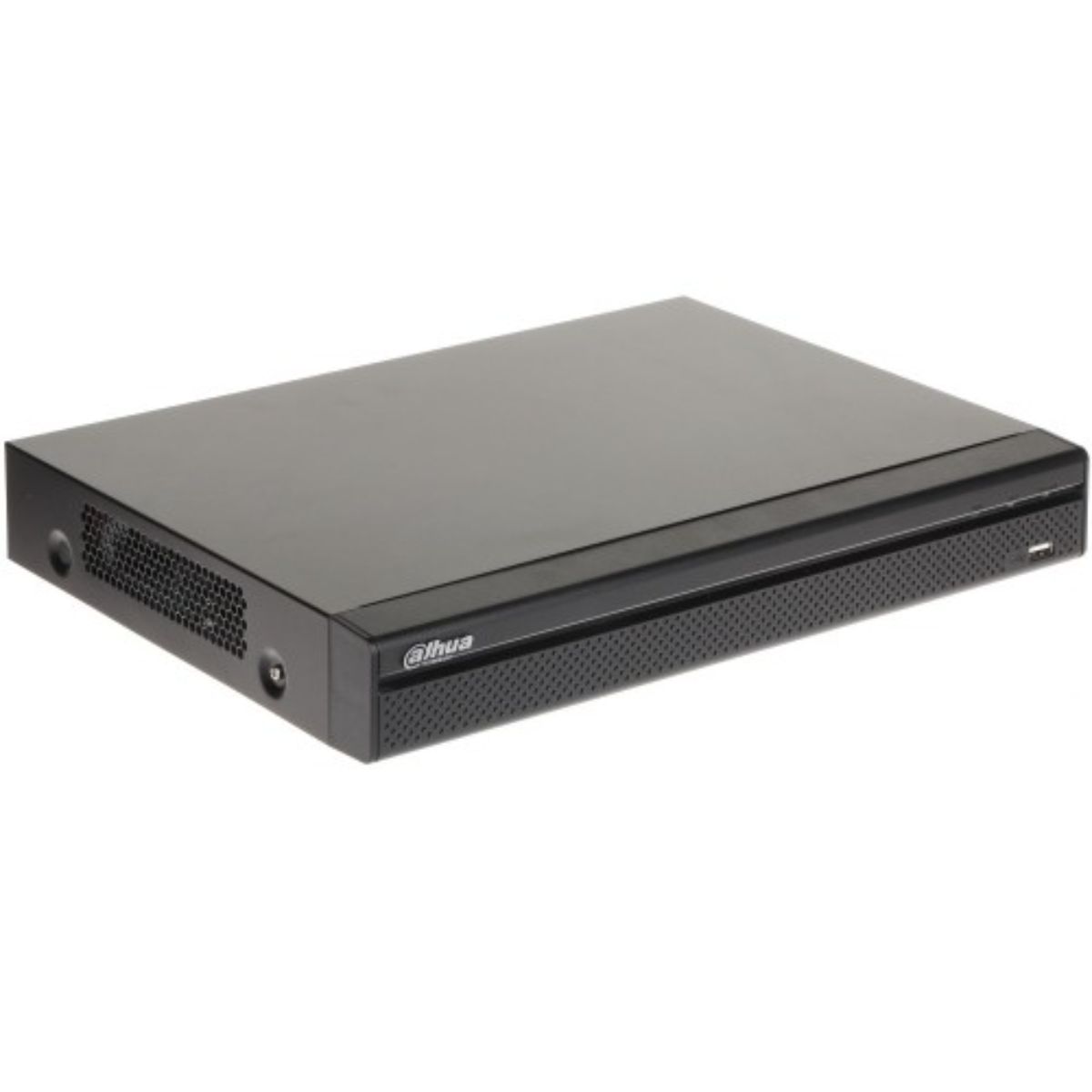

XVR1B04-I
4CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
* The information below only applies to hardware version 2.0 of the product.
> 4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
> 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
> Supports HDCVI, AHD, TVI, CVBS and IP video input.
> Supports up to 10-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 40 Mbps.
> Smart H.265+ and H.265 dual-stream video compression.

Specifications
Accessories
Download
More Information

Product Selector
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
SMD Plus
SMD Plus by Recorder
4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
5 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
1. CVI: 1080p@25/30 fps; 720p@25/30 fps.
2. TVI: 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input
Up to 5 channels of IPC access
2 IP channels by default + 8 channels (analog channels are converted to IP channels)
Incoming bandwidth: 40 Mbps, recording bandwidth: 40 Mbps and outgoing bandwidth: 40 Mbps
*After IP extension is enabled, the AI Function (SMD) will be disabled.
Encoding Capacity
Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–7 fps)
Dual-stream
Yes
Video Bit Rate
32 kbps–4096 kbps
Audio Sampling
8 kHz, 16 bit
Audio Bit Rate
64 kbps
Video Output
1 HDMI, 1 VGA
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9
When IP extensi
